德國HYDROTECHNIK和德尼科S100-AC-AC-0030N測壓軟管,S100-AA-AJ-0063液壓膠管,S110-AC-AC-0100壓力表線現貨

德國和德尼克Hydrotechnik 測壓軟管 S100-AC-AC-02.00

Hydrotechnik海德泰尼克 S100-AC-AC-02.00 測壓軟管

連接 B 螺紋：M16

連接 B - 螺紋標準：度量

長度：2 m

大工作壓力：400 bar

連接 A 線程：M16

軟管外徑：5毫米

小折彎半徑：20毫米

低工作溫度：-20°C

連接 B - 螺紋尺寸：M16

高工作溫度：+100°C

連接 A - 螺紋標準：度量

連接 A - 螺紋尺寸：M16

HYDROTECHNIK GmbH位于德國Limburg，是測壓接頭的*創**者。其*特的**設計結構保證了產品多次測量無泄漏，是許多企業如BOSCH REXROTH等指定的使用品牌。

HYDROTECHNIK的測量儀表更是液壓行業進行性能分析和維修服務的**品牌，了當今*先進和性價比*好的液壓測試儀表。如5060,8050等型號的測試儀表被BOSCH REXROTH、LIEBHER、VOLOV及國內幾乎所有工程機械大企業、液壓元件制造商、設備制造商用于新產品研發的性能分析。

HYDROTECHNIK開發生產的工業用壓力傳感器，由于其高精度以及良好的抗振性和穩定性，被廣泛應用于工程機械、冶金、機床、汽車等領域，受到廣大用戶的一致認可。

HYDROTECHNIK主要產品：HYDROTECHNIK流量計、HYDROTECHNIK壓力傳感器、HYDROTECHNIK液壓萬用表、HYDROTECHNIK溫度傳感器、HYDROTECHNIK轉速傳感器、HYDROTECHNIK計數器、HYDROTECHNIK顯示器、HYDROTECHNIK測量頭、HYDROTECHNIK測壓接頭、HYDROTECHNIK測試軟管

hydrotechnik測壓軟管S100-AA-AA-0063

hydrotechnik壓力表線S100-AA-AJ-0063

hydrotechnik液壓軟管S100-AA-AJ-0100N

hydrotechnik測壓膠管S100-AA-NA-0063

hydrotechnik軟管連接測壓接頭S100-AC-AC-0020N

hydrotechnik膠管接頭S100-AC-AC-0030N

hydrotechnik測壓軟管S100-AC-AC-0040N

hydrotechnik壓力表線S100-AC-AC-0050

hydrotechnik液壓膠管S100-AC-AC-0050N

hydrotechnik測壓膠管S100-AC-AC-0063N

hydrotechnik測壓軟管訂貨號S100-AC-AC-008

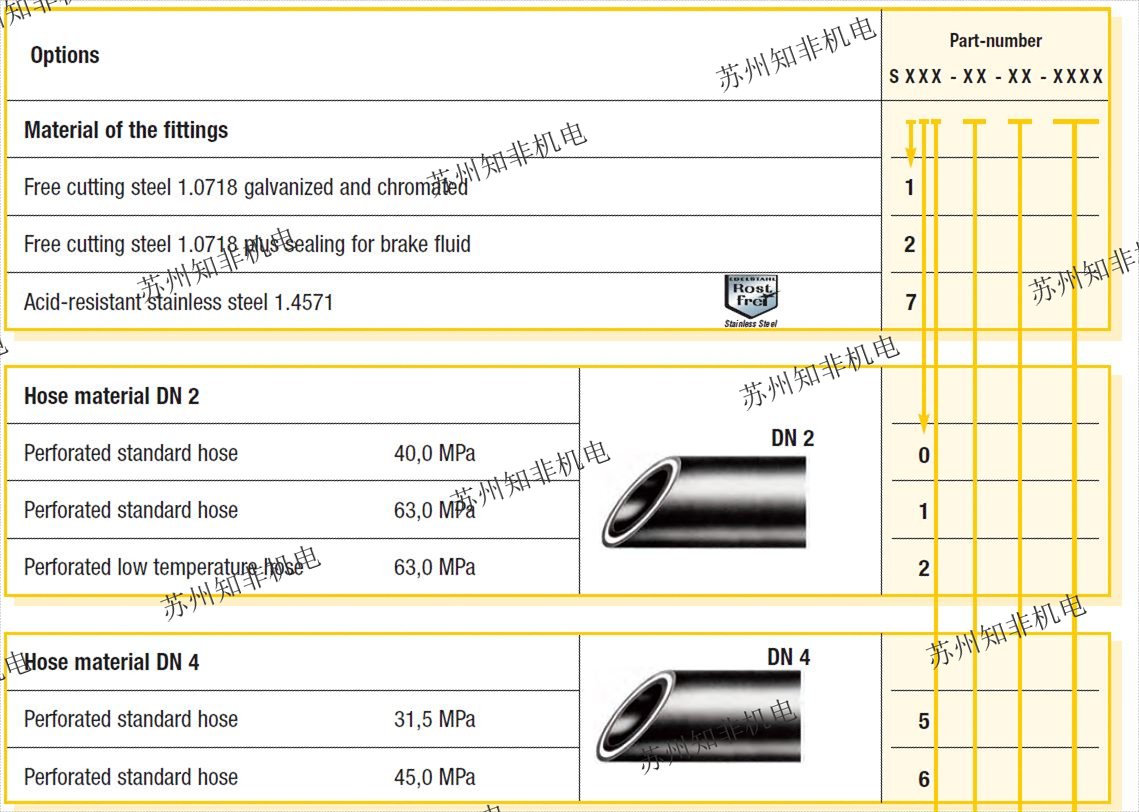

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：M16×2.0

L(mm) 大工作壓力 測壓軟管訂貨號 大工作壓力 測壓軟管訂貨號

200 40MPa S100-AC-AC-0020 63MPa S110-AC-AC-0020

300 S100-AC-AC-0030 S110-AC-AC-0030

400 S100-AC-AC-0040 S110-AC-AC-0040

500 S100-AC-AC-0050 S110-AC-AC-0050

630 S100-AC-AC-0063 S110-AC-AC-0063

800 S100-AC-AC-0080 S110-AC-AC-0080

1000 S100-AC-AC-0100 S110-AC-AC-0100

1250 S100-AC-AC-0125 S110-AC-AC-0125

1500 S100-AC-AC-0150 S110-AC-AC-0150

2000 S100-AC-AC-0200 S110-AC-AC-0200

2500 S100-AC-AC-0250 S110-AC-AC-0250

3200 S100-AC-AC-0320 S110-AC-AC-0320

4000 S100-AC-AC-0400 S110-AC-AC-0400

5000 S100-AC-AC-0500 S110-AC-AC-0500

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：M16×2.0，90°

200 40MPa S100-AC-AL-0020 63MPa S110-AC-AL-0020

300 S100-AC-AL-0030 S110-AC-AL-0030

400 S100-AC-AL-0040 S110-AC-AL-0040

500 S100-AC-AL-0050 S110-AC-AL-0050

630 S100-AC-AL-0063 S110-AC-AL-0063

800 S100-AC-AL-0080 S110-AC-AL-0080

1000 S100-AC-AL-0100 S110-AC-AL-0100

1250 S100-AC-AL-0125 S110-AC-AL-0125

1500 S100-AC-AL-0150 S110-AC-AL-0150

2000 S100-AC-AL-0200 S110-AC-AL-0200

2500 S100-AC-AL-0250 S110-AC-AL-0250

3200 S100-AC-AL-0320 S110-AC-AL-0320

4000 S100-AC-AL-0400 S110-AC-AL-0400

5000 S100-AC-AL-0500 S110-AC-AL-0500

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/4

400 40MPa S100-AC-FA-0040 63MPa S110-AC-FA-0040

500 S100-AC-FA-0050 S110-AC-FA-0050

630 S100-AC-FA-0063 S110-AC-FA-0063

800 S100-AC-FA-0080 S110-AC-FA-0080

1000 S100-AC-FA-0100 S110-AC-FA-0100

1250 S100-AC-FA-0125 S110-AC-FA-0125

1500 S100-AC-FA-0150 S110-AC-FA-0150

2000 S100-AC-FA-0200 S110-AC-FA-0200

2500 S100-AC-FA-0250 S110-AC-FA-0250

3200 S100-AC-FA-0320 S110-AC-FA-0320

4000 S100-AC-FA-0400 S110-AC-FA-0400

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/2

400 40MPa S100-AC-FB-0040 63MPa S110-AC-FB-0040

500 S100-AC-FB-0050 S110-AC-FB-0050

630 S100-AC-FB-0063 S110-AC-FB-0063

800 S100-AC-FB-0080 S110-AC-FB-0080

1000 S100-AC-FB-0100 S110-AC-FB-0100

1250 S100-AC-FB-0125 S110-AC-FB-0125

1500 S100-AC-FB-0150 S110-AC-FB-0150

2000 S100-AC-FB-0200 S110-AC-FB-0200

2500 S100-AC-FB-0250 S110-AC-FB-0250

3200 S100-AC-FB-0320 S110-AC-FB-0320

4000 S100-AC-FB-0400 S110-AC-FB-0400

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/4，90°

400 40MPa S100-AC-FC-0040 63MPa S110-AC-FC-0040

500 S100-AC-FC-0050 S110-AC-FC-0050

630 S100-AC-FC-0063 S110-AC-FC-0063

800 S100-AC-FC-0080 S110-AC-FC-0080

1000 S100-AC-FC-0100 S110-AC-FC-0100

1250 S100-AC-FC-0125 S110-AC-FC-0125

1500 S100-AC-FC-0150 S110-AC-FC-0150

2000 S100-AC-FC-0200 S110-AC-FC-0200

2500 S100-AC-FC-0250 S110-AC-FC-0250

3200 S100-AC-FC-0320 S110-AC-FC-0320

4000 S100-AC-FC-0400 S110-AC-FC-0400

hydrotechnik傳感器S100-AC-AC-0080N

hydrotechnik傳感器S100-AC-AC-0100N

hydrotechnik傳感器S100-AC-AC-0125N

hydrotechnik傳感器S100-AC-AC-0150N

hydrotechnik傳感器S100-AC-AC-02.50

hydrotechnik傳感器S100-AC-AC-0200N

hydrotechnik傳感器S100-AC-AC-0250N

hydrotechnik傳感器S100-AC-AC-0320N

hydrotechnik傳感器S100-AC-AC-0400N

hydrotechnik傳感器S100-AC-AC-05.00

hydrotechnik傳感器S100-AC-AC-0500N

hydrotechnik傳感器S100-AJ-AJ-0180

hydrotechnik傳感器S110-AC-AC-0020N

hydrotechnik傳感器S110-AC-AC-0030N

hydrotechnik傳感器S110-AC-AC-0040N

hydrotechnik傳感器S110-AC-AC-0050N

hydrotechnik傳感器S110-AC-AC-0063N

hydrotechnik傳感器S110-AC-AC-0080N

hydrotechnik傳感器S110-AC-AC-0100N

hydrotechnik傳感器S110-AC-AC-0125N

hydrotechnik傳感器S110-AC-AC-0150N

hydrotechnik傳感器S110-AC-AC-0200N

hydrotechnik傳感器S110-AC-AC-0250N

hydrotechnik傳感器S110-AC-AC-0320N

hydrotechnik傳感器S110-AC-AC-0400N

hydrotechnik傳感器S110-AC-AC-0500N

hydrotechnik傳感器S110-AC-AC-150

hydrotechnik傳感器S11F-AC-AC-0100

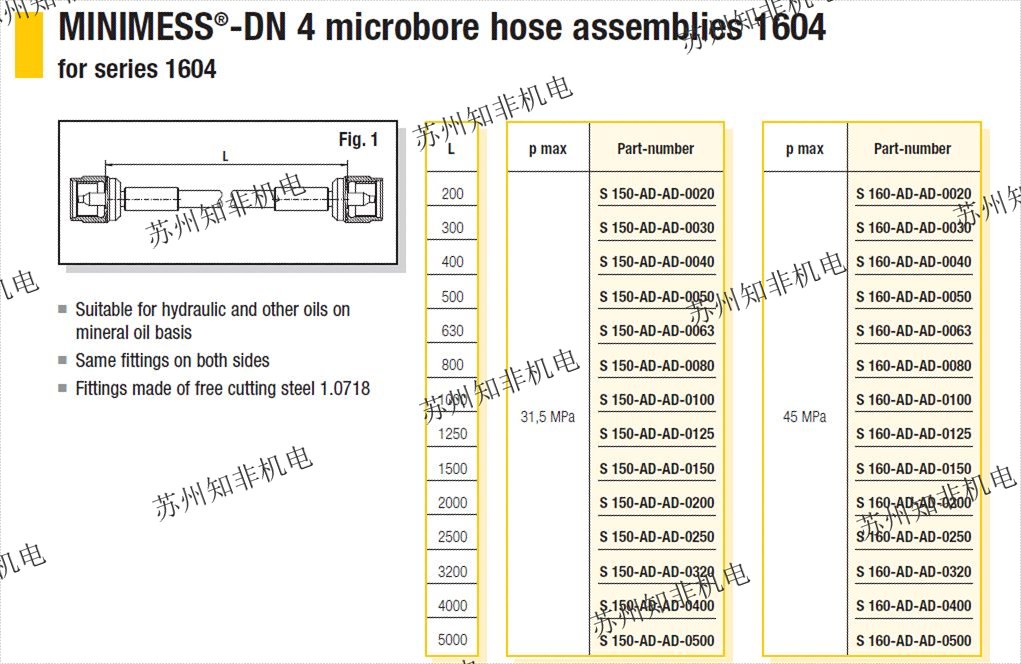

hydrotechnik傳感器S150-AD-AD-0020N
